OCTG & Energy Tubulars

API 5CT Casing & Tubing

Oilfield casing and tubing for well construction, completion and production strings.

Product Overview

OCTG supply for casing and production tubing strings

Himount supplies API 5CT casing and tubing for oil and gas wells, geothermal projects and energy tubular programs. Each order is reviewed by API edition or project specification, product type, grade, OD, weight, connection, length range, thread protection, inspection scope, mill route, packing and delivery schedule.

5CTAPI casing and tubing reference
J55-P110Common OCTG grade band
STC/BTCCasing connection options
NUE/EUETubing connection options

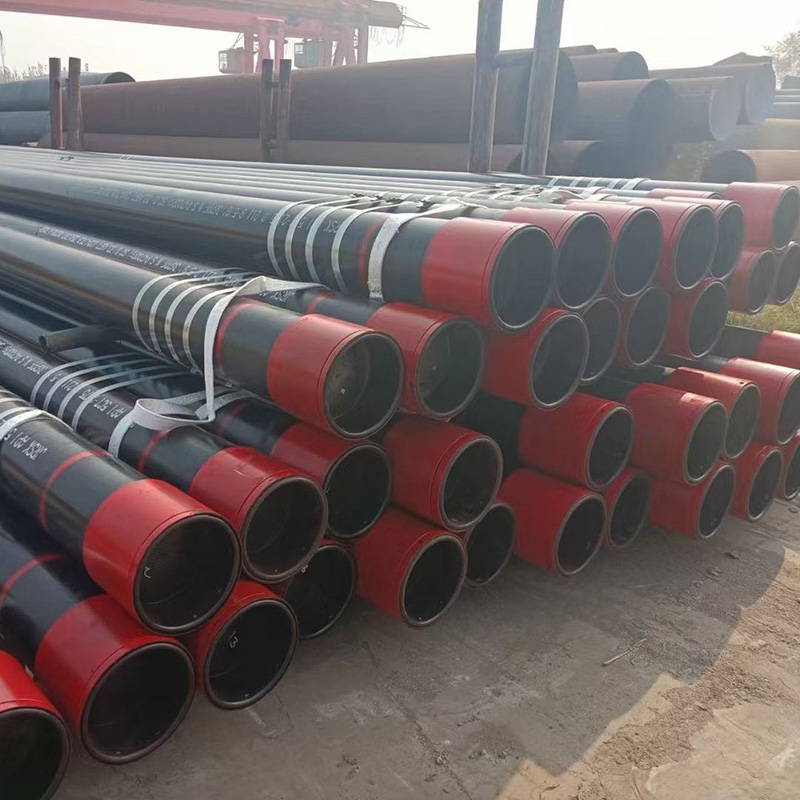

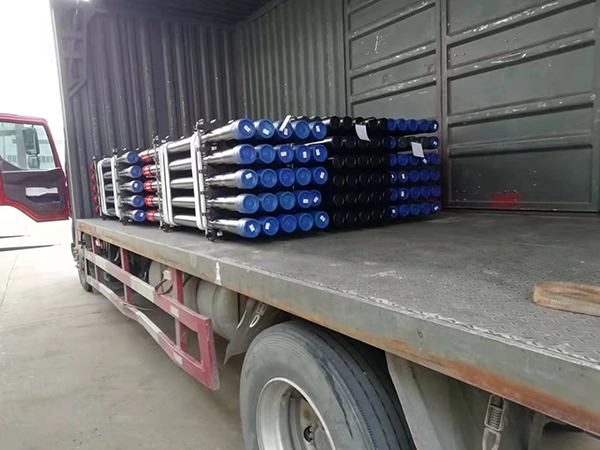

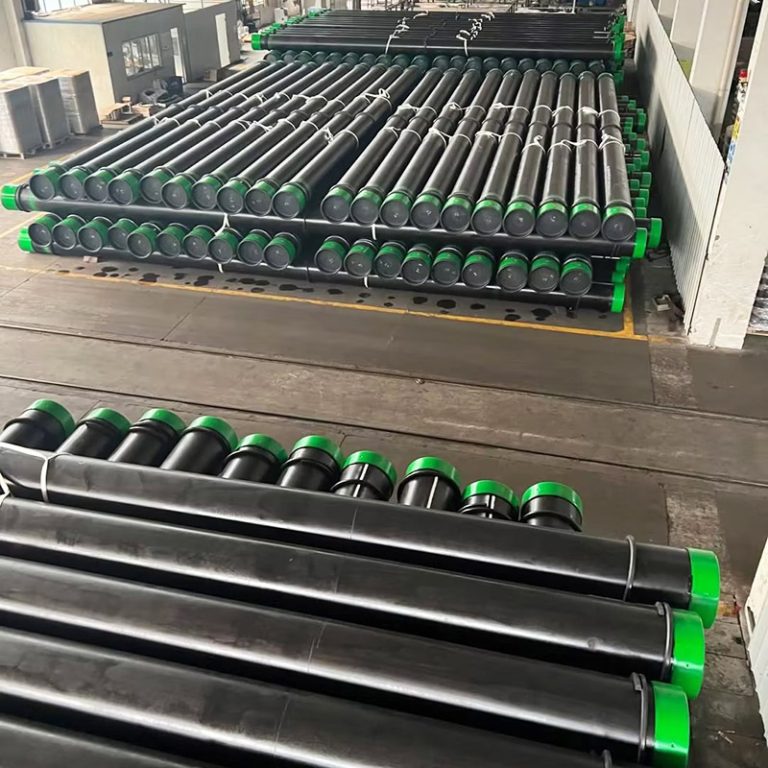

API 5CT casing pipe with thread protectorsAPI 5CT threaded OCTG pipe rackAPI 5CT casing and tubing loading for shipment

Key Specifications

Product formsAPI casing pipe, tubing pipe, coupled pipe, plain-end pipe, coupling stock and project pup joints where size and connection route are confirmed.
Primary standardsAPI Specification 5CT, ISO 11960 and purchaser project specifications covering OCTG casing, tubing, grades, dimensions, testing and marking.
Common gradesJ55, K55, N80-1, N80-Q, L80-1, L80-9Cr, L80-13Cr, C90, T95, P110 and Q125, subject to mill route, service condition and project review.
ConnectionsSTC, LTC and BTC casing connections; NUE and EUE tubing connections; premium or special connections are handled by approved project route.
Size and lengthCasing commonly follows API OD and weight schedules from 4-1/2 in to 20 in. Tubing commonly covers 1.900 in to 4-1/2 in. Length range R1, R2 or R3 is confirmed by order.
Inspection and testsDimensional check, visual inspection, hydrostatic test, drift test, thread inspection, coupling inspection, NDT by grade or PSL, marking and MTC according to ordered requirement.
Order detailsConfirm API edition, product type, grade, OD, weight or wall, connection, coupling, length range, PSL or inspection level, thread compound, protectors, quantity, packing and destination.

Typical Applications

Where API 5CT products are specified

Well casing stringsSurface casing, intermediate casing, production casing and liner programs where OD, weight, grade, connection and collapse/burst design are fixed by the well plan.
Production tubingTubing strings for production, injection, completion and workover programs requiring compatible thread, coupling, drift and inspection requirements.
Energy and geothermal wellsProject OCTG packages for energy wells where grade, corrosion condition, temperature, pressure and inspection plan must be reviewed before supply.
Grade selection note

API 5CT grade names should not be substituted by yield strength alone. Chemistry, delivery condition, impact requirements, hardness, sour-service limits and project specification must be checked before replacement.

Connection note

Casing and tubing quotations must state thread form, coupling type, length range, thread compound, protector colour or type, drift requirement and whether premium connection approval is needed.

International Model Search Index

Common standards, grades and RFQ terms

Standards and grade calls
API 5CT J55 casingAPI 5CT K55 casing pipeAPI 5CT N80 tubingN80-1 casingN80-Q tubingAPI 5CT L80-1 casingL80 13Cr tubingAPI 5CT P110 casingAPI 5CT Q125 casingISO 11960 casing tubing
Connection and size terms
STC casingLTC casingBTC casingNUE tubingEUE tubing7 inch 26 lb/ft casing9-5/8 inch casing2-7/8 inch EUE tubingR3 casing pipe
Buyer search phrases
API 5CT casing supplierOCTG tubing exporterP110 casing pipeL80 tubing supplierthreaded and coupled casingoilfield casing and tubingpremium connection OCTG

Buyer FAQ

Questions to settle before quotation

What should be confirmed for API 5CT casing and tubing?

Confirm API edition or project specification, product type, grade, outside diameter, weight or wall thickness, length range, connection, coupling, thread protection, inspection level, quantity, packing and destination.

Which API 5CT grades are commonly requested?

Common RFQs include J55, K55, N80-1, N80-Q, L80-1, L80-9Cr, L80-13Cr, C90, T95, P110 and Q125. Final selection depends on well condition, ordered standard, mill capability and inspection requirements.

Are casing and tubing connections interchangeable?

No. Connection type, coupling type, thread compound, drift requirement and compatibility with the well design or existing string must be confirmed before production or stock allocation.

What documents are normally requested?

Buyers normally request MTC, heat number traceability, dimensional records, hydrostatic or drift test confirmation, NDT records when required, thread inspection records and packing or loading photos.
